Walking aid robot for stroke people

Short Description:

The ZW568 is a wearable robot designed to enhance mobility. It features two power units located at the hip joint, providing auxiliary support for the thigh to flex and extend the hip. This walking aid helps stroke survivors walk more easily and conserves their energy. Its assistive and enhancement functions significantly improve the user’s walking experience and overall quality of life.

Send email to us

Product Detail

Product Tags

Product Description

In the medical field, exoskeleton robots have demonstrated exceptional value by offering precise and personalized rehabilitation training for patients with stroke, spinal cord injuries, and other conditions. These robots assist in restoring walking abilities and rebuilding confidence in daily life. Each step taken with their support is a significant stride towards improved health. Exoskeleton robots serve as dedicated partners for patients on their journey to recovery.

Specifications

Name		Exoskeleton Walking Aid Robot
Model		ZW568
Material		PC, ABS, CNC AL6103
Color		White
Net Weight		3.5kg ±5%
Battery		DC 21.6V/3.2AH Lithium Battery
Endurance Time		120mins
Charging Time		4 Hours
Power Level		1-5 Level (Max. 12Nm)
Motor		24VDC/63W
Adapter	Input	100-240V 50/60Hz
	Output	DC25.2V/1.5A
Operating Environment		Temperature：0℃ ～ 35℃，Humidity：30% ～ 75%
Storage Environment		Temperature：-20℃ ～ 55℃，Humidity：10% ～ 95%
Dimension		450270500mm(LWH)
Application	Height	150-190cm
	Weight	45-90kg
	Waist circumference	70-115cm
	Thigh circumference	34-61cm

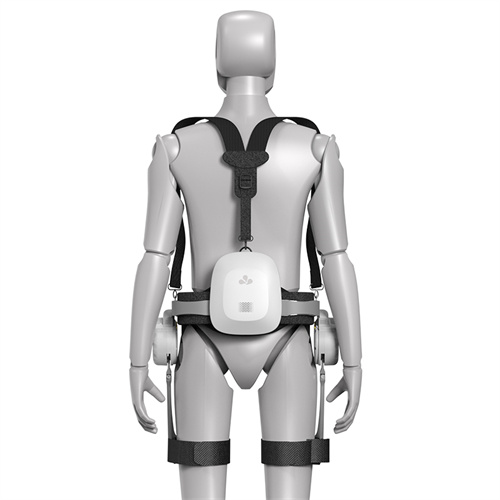

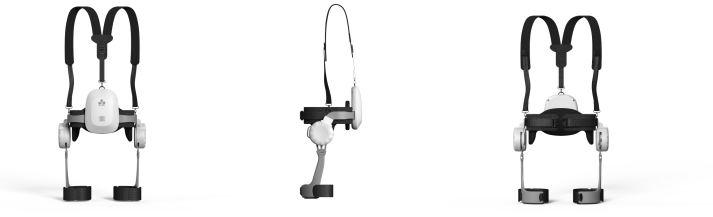

Product show

Features

We are proud to launch the three core modes of the exoskeleton robot: Left Hemiplegic Mode, Right Hemiplegic Mode and Walking Aid Mode, which are designed to meet the personalized needs of different users and inject unlimited possibilities into the road to rehabilitation.

Left Hemiplegic Mode: Designed specifically for patients with left-sided hemiplegia, it effectively assists the recovery of motor function of the left limbs through precise intelligent control, making every step more stable and powerful.
Right Hemiplegic Mode: Provides customized assistance support for right-sided hemiplegia, promotes the recovery of flexibility and coordination of the right limbs, and regains balance and confidence in walking.
Walking Aid Mode: Whether it is the elderly, people with limited mobility or patients in rehabilitation, the Walking Aid Mode can provide comprehensive walking assistance, reduce the burden on the body, and make walking easier and more comfortable.

Voice broadcast, intelligent companion every step
Equipped with advanced voice broadcast function, the exoskeleton robot can provide real-time feedback on the current status, assistance level and safety tips during use, allowing users to easily grasp all information without distractingly checking the screen, ensuring every step is safe and worry-free.

5 levels of power assistance, free adjustment
In order to meet the power assistance needs of different users, the exoskeleton robot is specially designed with a 5-level power assistance adjustment function. Users can freely choose the appropriate power assistance level according to their own situation, from slight assistance to strong support, and switch at will to make walking more personalized and comfortable.

Dual motor drive, strong power, stable forward movement
The exoskeleton robot with dual motor design has stronger power output and more stable operating performance. Whether it is a flat road or a complex terrain, it can provide continuous and stable power support to ensure the safety and comfort of users during walking.

Be suitable for：
